We consider two independent censored samples of sizes \(n_1\) and \(n_2\), one sample with the survival function \(S_1(t)\) and the cumulative hazard \(\Lambda_1(t)\), the other sample with the survival function \(S_2(t)\) and the cumulative hazard \(\Lambda_2(t)\). The censoring distribution need not be the same in both groups.
Consider the hypothesis \[ \begin{aligned} \mathrm{H}_0: &\, S_1(t)=S_2(t) \quad \forall t>0, \\ \mathrm{H}_1: &\, S_1(t)\neq S_2(t) \quad \text{ for some } t>0, \end{aligned} \quad \Longleftrightarrow \quad \begin{aligned} \mathrm{H}_0: &\, \Lambda_1(t)=\Lambda_2(t) \quad \forall t>0, \\ \mathrm{H}_1: &\, \Lambda_1(t)\neq \Lambda_2(t) \quad \text{ for some } t>0. \end{aligned} \]
The class of weighted logrank test statistics for testing \(H_0\) against \(H_1\) is \[ W_K=\int_0^\infty K(s)\,\mathrm{d}(\widehat{\Lambda}_1-\widehat{\Lambda}_2)(s), \] where \[ K(s)=\sqrt{\frac{n_1n_2}{n_1+n_2}} \frac{\overline{Y}_1(s)}{n_1}\, \frac{\overline{Y}_2(s)}{n_2}\,\frac{n_1+n_2}{\overline{Y}(s)}W(s) \] and \(W(s)\) is a weight function – it governs the power of the test against different alternatives.
\(W(s)=1\) is the logrank test. It is most powerful against proportional hazards alternatives, i.e., \(\lambda_1(t)=c\lambda_2(t)\) for some positive constant \(c\neq 1\).
\(W(s)=\overline{Y}(s)/(n+1)\) is the Gehan-Wilcoxon test which in the uncensored case is equivalent to two-sample Wilcoxon test. This test puts more weight on early differences in hazard functions than on differences that occur later.
\(W(s)=\widehat{S}(s-)\) is the Prentice-Wilcoxon test (also known as Peto-Prentice or Peto and Peto test). It is especially powerful against alternatives with strong early effects that weaken over time. Preferred compared to Gehan-Wilcoxon test.
\(W(s)=\left[\widehat{S}(s-)\right]^\rho\left[1-\widehat{S}(s-)\right]^\gamma\) is the \(G(\rho,\gamma)\) class of tests of Fleming-Harrington. The logrank test is a special case for \(\rho=\gamma=0\), the Prentice-Wilcoxon test is a special case for \(\rho=1,\ \gamma=0\). The \(G(0,1)\) test is especially powerful against alternatives with little initial difference in hazards that gets stronger over time.
Let \(\widehat\sigma^2_K\) be the estimated variance of \(W_K\) under \(H_0\), which is of the form \[ \widehat{\sigma}_K^2 = \int \limits_{0}^{\infty} \dfrac{K^2(s)}{\overline{Y}_1(s) \overline{Y}_2(s)} \left(1 - \dfrac{\Delta \overline{N}(s)-1}{\overline{Y}(s) - 1}\right) \,\mathrm{d} \overline{N}(s). \] It can be shown that, under \(H_0\), \[ \frac{W_K}{\widehat\sigma_K}\stackrel{D}{\longrightarrow}\mathsf{N}(0,1) \qquad\text{ and }\qquad \frac{W^2_K}{\widehat\sigma^2_K}\stackrel{D}{\longrightarrow}\chi^2_1. \]
Let \(t_1<t_2<\cdots<t_d\) be the ordered distinct failure times in both samples. The weighted logrank test statistic (without the normalizing constant depending on \(n_1\) and \(n_2\)) can be written as \[ \sum_{j=1}^d \biggl(\Delta\overline{N}_1(t_j)-\Delta\overline{N}(t_j) \frac{\overline{Y_1}(t_j)}{\overline{Y}(t_j)}\biggr) W(t_j). \] The variance estimator \(\widehat{\sigma}_K^2\) (again without the normalizing constant depending on \(n_1\) and \(n_2\)) can be calculated using the following formula \[ \sum \limits_{j = 1}^d \Delta N(t_j) \cdot \dfrac{\overline{Y}_1(t_j) \overline{Y}_2(t_j)}{\left(\overline{Y}(t_j)\right)^2} \cdot \dfrac{\overline{Y}(t_j) - \Delta N(t_j)}{\overline{Y}(t_j) - 1} \cdot \left(W(t_j)\right)^2. \]
Download the dataset km_all.RData.
The dataframe inside is called all
. It includes 101
observations and three variables. The observations are acute lymphatic
leukemia [ALL] patients who had undergone bone marrow transplant. The
variable time
contains time (in months) since
transplantation to either death/relapse or end of follow up, whichever
occured first. The outcome of interest is time to death or
relapse of ALL (relapse-free survival). The variable
delta
includes the event indicator (1 = death or relapse, 0
= censoring). The variable type
distinguishes two different
types of transplant (1 = allogeneic, 2 = autologous).
Using ordinary R functions (not the survival
package),
calculate and print the following table:
\(j\) | \(t_j\) | \(d_{1j}\) | \(d_{j}\) | \(y_{1j}\) | \(y_j\) | \(e_j=d_j\frac{y_{1j}}{y_j}\) | \(d_{1j}-e_j\) | \(v_j=d_j\dfrac{y_{1j} (y_j-y_{1j}) (y_j-d_j)}{y_j^2 (y_j - 1)}\) |
---|---|---|---|---|---|---|---|---|
1 | … | … | … | … | … | … | … | … |
… | … | … | … | … | … | … | … | … |
d | … | … | … | … | … | … | … | … |
where \(j\) is the order of the failures, \(t_j\) is the ordered failure time, \(d_{1j}=\Delta\overline{N}_1(t_j)\), \(d_j=\Delta\overline{N}(t_j)\), \(y_{1j}=\overline{Y}_1(t_j)\), \(y_j=\overline{Y}(t_j)\).
Use these values to perform logrank test on your own.
BONUS: Try to implement \(G(\rho,\gamma)\) test, remember, you need left-continuous version of the Kaplan-Meier estimator of the survival function.
The function survdiff
in the package
survival
can calculate the \(G(\rho, 0)\) statistics. The default is
\(\rho = 0\), that is, the logrank
test. Output is a list with:
$chisq
- test statistic in the squared form \(W_K^2/\widehat{\sigma}_K^2\),$var[1,1]
- variance estimator \(\widehat{\sigma}_K^2\),pchisq(...$chisq, df = 1, lower.tail = FALSE)
.library("survival")
survdiff(Surv(time, delta) ~ type, data = all)
survdiff(Surv(time, delta) ~ type, data = all, rho = 2)
## Call:
## survdiff(formula = Surv(time, delta) ~ type, data = all)
##
## N Observed Expected (O-E)^2/E (O-E)^2/V
## type=1 50 22 24.2 0.195 0.382
## type=2 51 28 25.8 0.182 0.382
##
## Chisq= 0.4 on 1 degrees of freedom, p= 0.5
The function FHtestrcc
in the package
FHtest
can calculate the \(G(\rho, \gamma)\) statistics for non-zero
\(\gamma\). The default is \(\rho=0,\ \gamma=0\), that is, the logrank
test. The parameter \(\gamma\) is
entered as the argument lambda
. For the proper choice of
\(\rho\) and \(\gamma\) read Details of
help(FHtestrcc)
. Output is a list with:
$statistic
- test statistic in the form \(W_K/\widehat{\sigma}_K\),$var
- variance estimator \(\widehat{\sigma}_K^2\),$pvalue
- pvalue of the test associated with the
selected alternative hypothesis (parameter
alternative
),library("FHtest")
FHtestrcc(Surv(time, delta) ~ type, data = all)
FHtestrcc(Surv(time, delta) ~ type, data = all, rho = 0.5, lambda = 2)
##
## Two-sample test for right-censored data
##
## Parameters: rho=0.5, lambda=2
## Distribution: counting process approach
##
## Data: Surv(time, delta) by type
##
## N Observed Expected O-E (O-E)^2/E (O-E)^2/V
## type=1 50 0.961 1.69 -0.732 0.316 5.63
## type=2 51 2.369 1.64 0.732 0.327 5.63
##
## Statistic Z= 2.4, p-value= 0.0176
## Alternative hypothesis: survival functions not equal
Caution
The package FHtest
requires the package
Icens
which is not available from CRAN and cannot be
installed by standard methods. It is available from the Bioconductor
repository. It can be downloaded manually and installed by a command
such as:
install.packages("PATH TO Icens_xxx.zip", repos = NULL)
# or if you have troubles with R version, try
library("remotes")
install_github("cran/Icens")
survdiff
and FHtestrcc
output)
Compare your calculation of logrank test with the output of the
functions survdiff
and FHtestrcc
in the case
of dataset all
.
In the all
data, investigate the difference in survival
and hazard functions according to the type of transplant. Remember that
the outcome is relapse-free survival.
Calculate and plot estimated survival functions by the type of transplant (1 = allogeneic, 2 = autologous). Distinguish the groups by color. Add a legend.
Calculate and plot Nelson-Aalen estimators of cumulative hazard functions by the type of transplant (1 = allogeneic, 2 = autologous). Distinguish the groups by color. Add a legend.

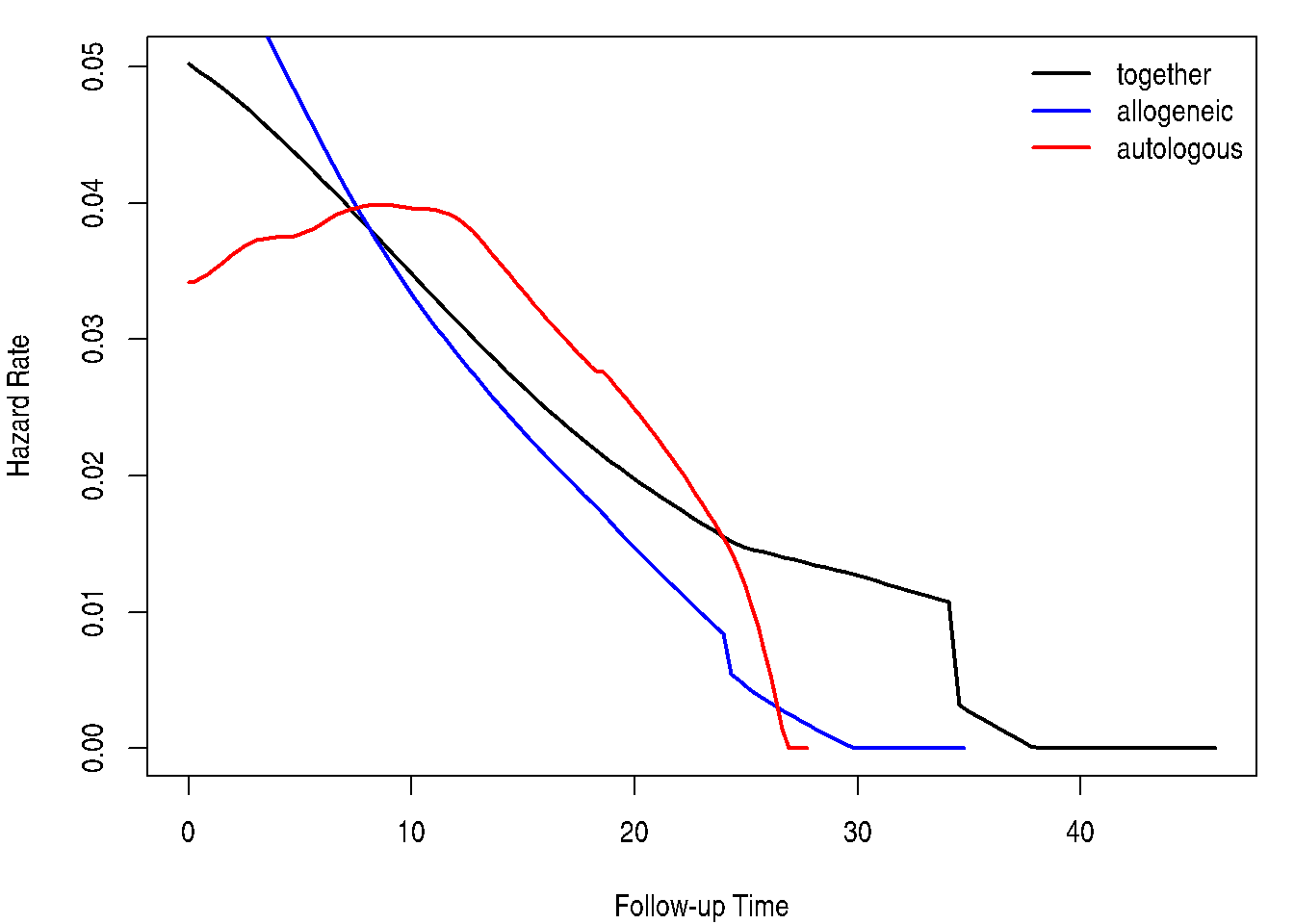

Calculate and plot smoothed hazard functions by the type of transplant (1 = allogeneic, 2 = autologous). Distinguish the groups by color. Add a legend.
Perform logrank, Prentice-Wilcoxon and \(G(0,1)\) tests using functions
survdiff
or FHtestrcc
. Interpret the
results. Which test is more suitable in this case?
Hint for obtaining a smoothed hazard functions:
library("muhaz")
haz <- muhaz(all$time, all$delta)
plot(haz, col = "black", lwd = 2)
